https://www.asus.com/motherboards-components/motherboards/others/b850-max-gaming-wifi-w/

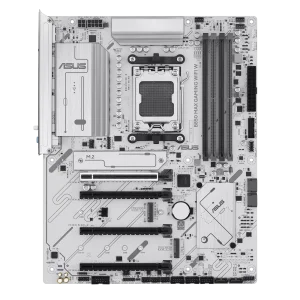

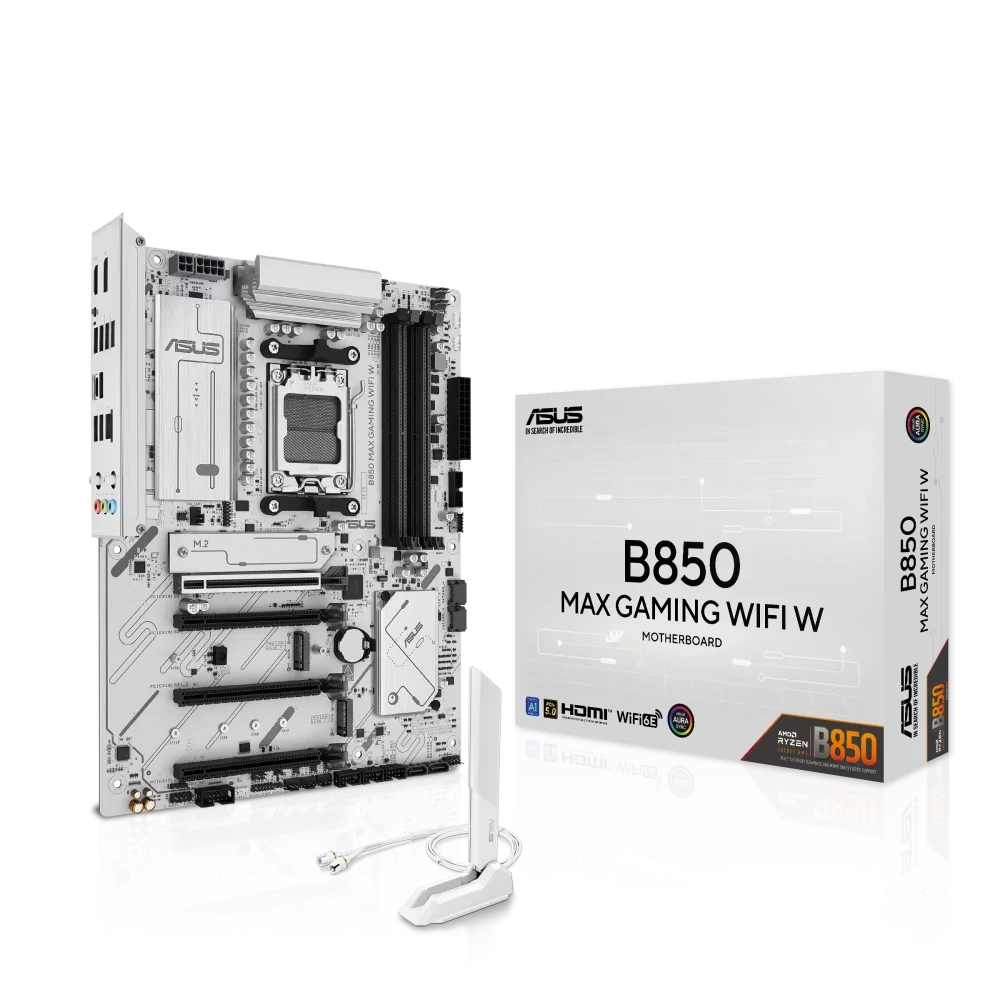

B850 MAX GAMING WIFI W
Please visit our GLOBAL website to check and download the latest updates.
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
AMD B850 Chipset
4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
1 x DisplayPort**
1 x HDMI™ port***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD B850 Chipset
1 x PCIe 4.0 x16 slot (support x4 mode)
2 x PCIe 3.0 x16 slots (support x1 mode)***
* Please check the PCIe bifurcation table on the support site.
** Specifications vary by CPU types.
*** The PCIEX16(G3)_1/2 share bandwidth with SATA6G_1/2. The SATA6G_1/2 will be disabled when The PCIEX16(G3)_1 or PCIEX16(G3)_2 runs.
Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)*
AMD B850 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s ports
AMD RAIDXpert2 Technology: Ryzen™ 9000 Series (RAID 0/1/5/10), 8000 Series (RAID 0/1), 7000 Series (RAID 0/1/10)
1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
Wi-Fi 6E (802.11ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3**
Rear USB (Total 8 ports): 4 x USB 10Gbps (3 x Type-A + 1 x Type-C®), 2 x USB 5Gbps, 2 x USB 2.0
Front USB (Total 9 ports): 1 x USB 5Gbps (Type-C®), 1 x USB 5Gbps header (2 ports), 3 x USB 2.0 headers (6 ports)
Realtek 7.1 Surround Sound High Definition Audio CODEC*
Audio Features: Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers
1 x USB 10Gbps (Type-C®), 3 x USB 10Gbps (Type-A), 2 x USB 5Gbps, 2 x USB 2.0, 1 x DisplayPort, 1 x HDMI™, 1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet, 3 x Audio jacks, 1 x BIOS FlashBack™ button
Fan and Cooling: 1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 1 x 4-pin AIO Pump, 4 x 4-pin Chassis Fan
Power: 1 x 24-pin Main, 1 x 8-pin +12V, 1 x 4-pin +12V
Storage: 3 x M.2 slots (Key M), 4 x SATA 6Gb/s ports
Miscellaneous: 3 x Addressable RGB Gen 2, 1 x Clear CMOS, 1 x COM Port, 1 x Front Panel Audio, 1 x S/PDIF Out, 1 x SPI TPM, 1 x Thunderbolt™ (USB4®) header
ASUS 5X PROTECTION III: DIGI+ VRM, LANGuard, Overvoltage protection, SafeSlot, Stainless-steel back I/O
ASUS Q-Design: Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot
ASUS EZ DIY: BIOS FlashBack™, Pre-mounted I/O shield
ASUS Exclusive Software: Armoury Crate (Aura Sync, Fan Xpert 2+), ASUS AI Advisor, ASUS Driver Hub, TurboV Core
UEFI BIOS: ASUS EZ Flash 3, ASUS CrashFree BIOS 3
256 Mb Flash ROM, UEFI AMI BIOS
WOL by PME, PXE
2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, M.2 rubber and screw packages, 1 x Quick start guide
Windows 11, Windows 10 64-bit
