Aprašymas

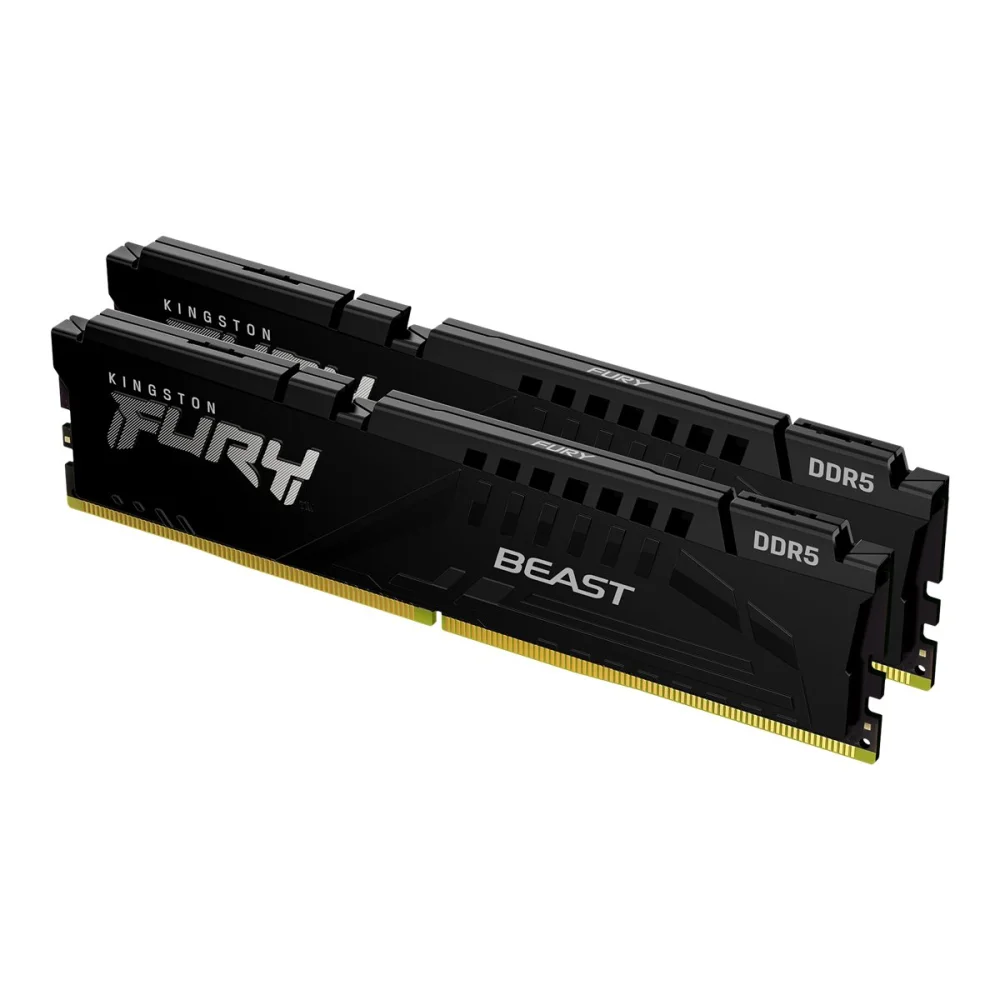

Kingston FURY KF556C40BBK2-32 is a kit of two 2G x 64-bit (16GB) DDR5-5600 CL40 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is 32GB. Each module has been tested to run at DDR5-5600 at a low latency timing of 40-40-40 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:
FACTORY TIMING PARAMETERS
- Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V
- XMP Profile #1: DDR5-5600 CL40-40-40 @1.25V
- XMP Profile #2: DDR5-5200 CL40-40-40 @1.25V
- XMP Profile #3: DDR5-4800 CL38-38-38 @1.1V
FEATURES
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- Height 1.37” (34.9mm), w/heatsink
Specifikacija
- Garantija
- 24 mėn
- Spalva
- Juoda
- Išmatavimai (I x P x A)
- Nėra duomėnų
- Svoris
- Nėra duomenų
- Apšvietimas
- Ne
- RGB Apšvietimas
- Ne
- RAM Talpa (Bendra)
- 2x16 GB
- RAM Tipas
- DDR5
- RAM Forma
- DIMM
- RAM Greitis
- 5 600 MT/s
- RAM CAS Latency
- 36
- RAM ECC
- Nėra duomenų
- RAM Modulių kiekis
- 2
- RAM Įtampa
- 1.25 V
