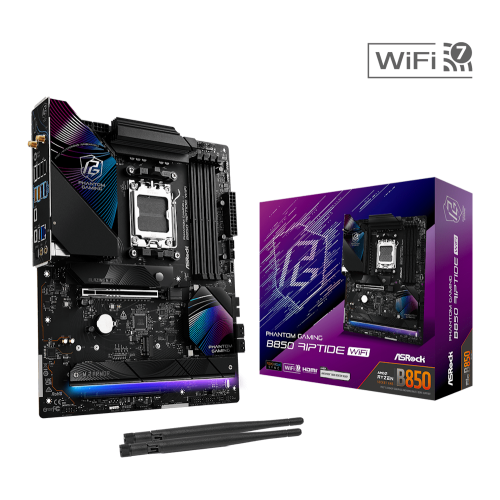

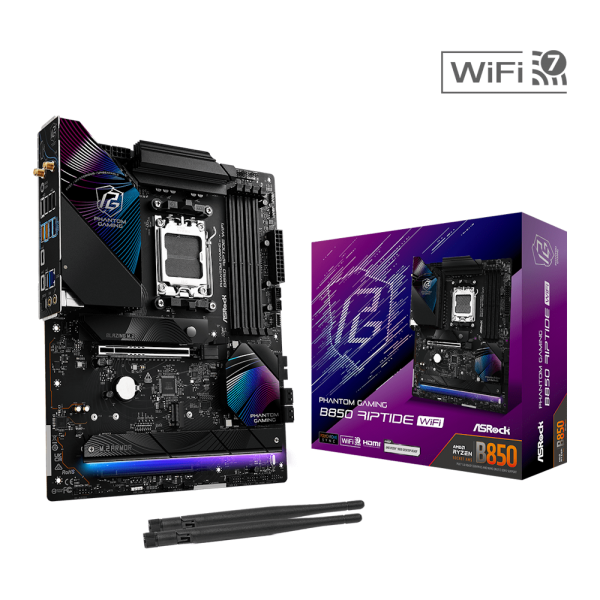

ASROCK B850 Riptide WiFi Pagrindinė Plokštė

ASROCK B850 Riptide WiFi Pagrindinė Plokštė

https://pg.asrock.com/mb/AMD/B850%20Riptide%20WiFi/index.asp#Overview

Unique Feature	Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 Rock-Solid Durability - 14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC+MISC with Enlarged Heatsink Armor - Flexible Integrated I/O Shield - 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Gaming - Killer 2.5G LAN, 802.11be Wi-Fi 7 Module - ASRock Lightning Gaming Ports EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker
CPU	Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors* * The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.
Chipset	AMD B850
Memory	- Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC) - Max. capacity of system memory: 256GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
BIOS	256Mb AMI UEFI Legal BIOS with GUI support
Graphics	Integrated AMD RDNA™ graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
Audio	- 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) - Individual PCB Layers for R/L Audio Channel - Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets) - Nahimic Audio
LAN	- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Killer E3100G - Supports Killer LAN Software
Wireless LAN	- 802.11be 2x2 Wi-Fi 7 Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe/be - Supports 2.4GHz/5GHz/6GHz* frequency band - Supports 160MHz channel bandwidth with 6GHz* frequency band - 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.4 - Supports MU-MIMO * The Wi-Fi 7 module is supported by Microsoft Windows® 11 only. There is no driver available for Windows® 10. The availability of the 6GHz band will depend on the different regulation status of each country and region.
Slots	CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - 15μ Gold Contact in VGA PCIe Slot (PCIE1) * PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1), and Gen4x4 with 8000 (Phoenix 2). If M2_4 is occupied, PCIE2 will be disabled. Supports NVMe SSD as boot disks.
Storage	CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), PCIe Gen5x4 - 1 x Hyper M.2 Socket (M2_2, Key M), PCIe Gen4x4 Chipset: - 1 x Hyper M.2 Socket (M2_3, Key M), PCIe Gen4x4 - 1 x Hyper M.2 Socket (M2_4, Key M), PCIe Gen4x4 - 4 x SATA3 6.0 Gb/s (ASMedia ASM1061) RAID: - Supports RAID 0/1/10 for NVMe M.2 devices
USB	CPU: - 2 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 1 x USB 3.2 Gen1 Type-A (Rear) Chipset: - 1 x USB 3.2 Gen2x2 Type-C (Front) - 1 x USB 3.2 Gen2 Type-A (Rear) - 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front) * All USB ports support ESD Protection
Internal I/O	- 1 x SPI TPM Header - 1 x Thermistor Cable Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 2 x CPU Fan (4-pin) - 3 x Chassis Fan (4-pin) - 1 x AIO Pump Fan (4-pin) - 1 x 24-pin ATX Power Connector - 2 x 8-pin 12V Power Connectors - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers - 2 x USB 3.2 Gen1 Headers - 1 x USB 3.2 Gen2x2 Type-C Header
Back Panel	- 2 x Antenna Ports - 1 x HDMI Port - 1 x Optical SPDIF Out - 2 x USB 3.2 Gen2 Type-C - 3 x USB 3.2 Gen1 Type-A - 2 x USB 3.2 Gen2 Type-A - 4 x USB 2.0 - 1 x RJ-45 LAN - 1 x BIOS Flashback Button - 1 x Line Out (Gold Jack) - 1 x Mic In (Gold Jack)
Software & UEFI	Software: - ASRock Motherboard Utility (Phantom Gaming Tuning) - Killer Control Center - ASRock Polychrome SYNC UEFI: - ASRock EZ Mode - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash
Accessories	- 2 x SATA Data Cables - 2 x WiFi Antennas - 1 x ARGB Splitter Cable - 1 x Thermistor Cable
Form Factor	ATX, 30.5 cm x 24.4 cm, 8 Layer PCB
OS Support	Microsoft Windows® 10 64-bit / 11 64-bit
Certifications	FCC, CE, ErP/EuP Ready
