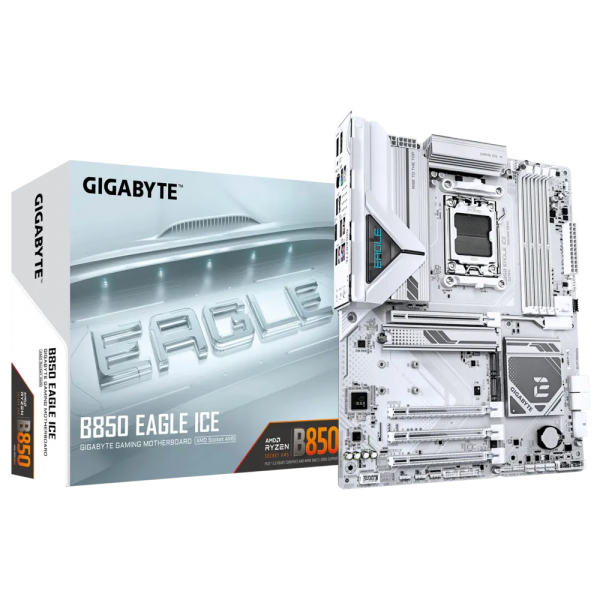

GIGABYTE B850 EAGLE ICE Pagrindinė Plokštė

Galerija

Aprašymas
Įvertinimai (0)

GIGABYTE B850 EAGLE ICE Pagrindinė Plokštė

https://www.gigabyte.com/Motherboard/B850-EAGLE-ICE

CPU	AMD Socket AM5, support for: - AMD Ryzen™ 9000 Series Processors - AMD Ryzen™ 8000 Series Processors - AMD Ryzen™ 7000 Series Processors (See GIGABYTE website for latest CPU support list.)

Chipset	AMD B850

Memory	Support for DDR5 8200(O.C) / 4400 MT/s 4 x DDR5 DIMM slots, up to 256 GB total Dual channel architecture Non-ECC Un-buffered DIMMs Supports AMD EXPO™ and XMP (Depends on CPU & configuration)

Onboard Graphics	Integrated AMD Radeon™ Graphics - 1 x DisplayPort: 3840x2160@144Hz (DP 1.4, HDR) - 1 x HDMI: 4096x2160@60Hz (HDMI 2.1, HDCP 2.3, HDR) (*Depends on CPU)

Audio	Realtek® Audio CODEC High Definition Audio, 2/4/5.1/7.1 channels (*Configurable via software)

LAN	Realtek® 2.5GbE LAN (2.5/1/0.1 Gbps)

Wireless	Realtek® Wi‑Fi 7 RTL8922AE - Supports 802.11a/b/g/n/ac/ax/be (2.4/5/6GHz) - Bluetooth 5.4 * Requires Windows 11 SV3 ** 6GHz support depends on region

Expansion Slots	CPU: - 1 x PCIe x16 (PCIEX16) • Ryzen 9000/7000: PCIe 5.0 x16 • Ryzen 8000 Phoenix 1: PCIe 4.0 x8 • Ryzen 8000 Phoenix 2: PCIe 4.0 x4 * Graphics card or NVMe SSD only Chipset: - 1 x PCIe x16 (x4 mode) - 2 x PCIe x1 (PCIe 3.0) * Using PCIEX1_1/2 disables SATA3 0/1

Storage	M.2: - M2A_CPU: PCIe 5.0 x4/x2 (9000/7000) - M2B_CPU: PCIe 4.0 x4/x2 (9000/7000) - M2C_SB: PCIe 4.0 x2 (Chipset) (All support 22110/2280 SSDs) SATA: - 4 x SATA 6Gb/s RAID: - NVMe: RAID 0/1/5/10 - SATA: RAID 0/1/10 (RAID 5 only on Ryzen 9000)

USB	CPU: - 1 x USB-C (USB 3.2 Gen 1) - 2 x USB 3.2 Gen 2 Type-A Chipset: - 1 x USB-C (Gen 1, internal) - 4 x USB 3.2 Gen 1 (2 rear, 2 internal) - 4 x USB 2.0 (rear) - 4 x USB 2.0 (internal)

Internal I/O	- 1 x 24-pin ATX - 1 x 8-pin + 1 x 4-pin ATX 12V - 1 x CPU fan + 1 x CPU/pump header - 3 x system fan + 1 x sys/pump header - 3 x ARGB Gen2 headers - 1 x RGB header - 3 x M.2 - 4 x SATA - 1 x front panel header - 1 x front panel audio - 1 x USB-C Gen1 header - 1 x USB 3.2 Gen1 header - 2 x USB 2.0 headers - 1 x TPM header - 1 x Reset button - 1 x Reset jumper - 1 x Clear CMOS jumper

Back Panel	- 1 x DisplayPort - 1 x HDMI - 1 x Q-Flash Plus button - 4 x USB 2.0 - 1 x PS/2 port - 2 x USB 3.2 Gen 2 (Type-A) - 1 x USB-C (Gen 1) - 2 x USB 3.2 Gen 1 - 1 x RJ-45 LAN - 2 x Wi-Fi antenna connectors - 3 x audio jacks (*Display output support depends on CPU)

I/O Controller	iTE® I/O Controller Chip

H/W Monitoring	- Voltage, temperature, fan speed detection - Water cooling flow detection - Fan fail warning - Fan/pump speed control (*Depends on installed fan/pump)

BIOS	- 1 x 256 Mbit flash - Licensed AMI UEFI BIOS - PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0

Special Features	- GIGABYTE Control Center (GCC) - Q-Flash & Q-Flash Plus - Smart Backup

Software	- Norton® Internet Security (OEM) - LAN bandwidth management software

OS Support	Windows 11 64-bit

Form Factor	ATX (30.5 x 24.4 cm)

Gamintojas: GIGABYTE
Prekės kodas: B850 EAGLE ICE
Prieinamumas: Teirautis
Pristatymo laikas: Teirautis
