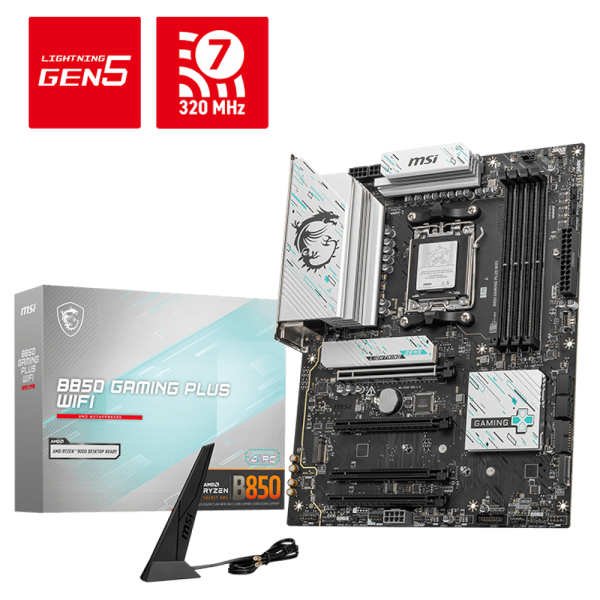

MSI B850 GAMING PLUS WIFI Pagrindinė Plokštė
MSI B850 GAMING PLUS WIFI Pagrindinė Plokštė
https://www.msi.com/Motherboard/B850-GAMING-PLUS-WIFI
| Chipset | AMD B850 |
| CPU | Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors Socket AM5 |
| Memory | 4x DDR5 UDIMM, Max Capacity 256GB DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Max Overclocking: • 1DPC 1R: up to 8200+ MT/s • 1DPC 2R: up to 6400+ MT/s • 2DPC 1R: up to 6400+ MT/s • 2DPC 2R: up to 6000+ MT/s Supports AMD POR and JEDEC speeds Supports Memory Overclocking and AMD EXPO™ Dual-Channel mode, Non-ECC, Un-buffered Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series. Manual OC may be required. BIOS updates may improve compatibility. • Memory compatibility depends on CPU and memory configuration. See MSI Support for details. |
| Onboard Graphics | 1x DisplayPort (1.2, max 4K @ 60Hz) * Only available with processors featuring integrated graphics. Specs may vary by CPU. |
| Slot | 4x PCI-E x16 slots PCI_E1: PCIe 5.0 x16 (From CPU) PCI_E2: PCIe 3.0 x1 (From Chipset) PCI_E3: PCIe 4.0 x4 (From Chipset) PCI_E4: PCIe 3.0 x1 (From Chipset) PCI_E1 slot: • PCIe 5.0 x16 (Ryzen™ 9000/7000) • PCIe 4.0 x8 (Ryzen™ 8700/8600/8400) • PCIe 4.0 x4 (Ryzen™ 8500/8300) * PCI_E2, PCI_E3 & PCI_E4 share bandwidth. PCI_E3 will run at x2 when PCI_E2 or PCI_E4 is populated. |
| Audio | Realtek® ALC897 7.1-Channel High Definition Audio |
| Storage | 3x M.2 • M.2_1 (From CPU): PCIe 5.0 x4, 2280/2260 • M.2_2 (From CPU): PCIe 4.0 x4, 22110/2280 • M.2_3 (From Chipset): PCIe 4.0 x2, 2280/2260 4x SATA 6G M.2_1: • PCIe 5.0 x4 (Ryzen™ 9000/7000) • PCIe 4.0 x4 (Ryzen™ 8000) * See manual for M.2 SSD heatsink restrictions. |
| RAID | Supports RAID 0, 1 for SATA and M.2 NVMe |
| USB | Rear: • 4x USB 2.0 • 1x USB 5Gbps Type-A • 1x USB 10Gbps Type-A • 2x USB 10Gbps Type-C Front: • 4x USB 2.0 • 4x USB 5Gbps Type-A • 1x USB 5Gbps Type-C |
| LAN | Realtek® 8126VB 5G LAN |
| Internal IO | 1x 24-pin ATX Power 2x 8-pin CPU Power 1x 8-pin PCIe Power (PCIE_PWR) 1x CPU Fan 1x Pump/Sys Combo Fan 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x COM Port (JCOM) 1x JDASH (Tuning Controller) 3x Addressable RGB (JARGB_V2) 1x RGB LED (JRGB) 1x TPM Header (TPM 2.0) 4x USB 2.0 4x USB 5Gbps Type-A 1x USB 5Gbps Type-C |
| Wireless LAN & Bluetooth | Wi-Fi 7 (Pre-installed in M.2 Key-E slot) MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (320MHz), up to 5.8Gbps Supports 802.11 a/b/g/n/ac/ax/be Bluetooth® 5.4, MLO, 4KQAM * 6GHz support depends on region. Wi-Fi 7 requires Windows 11 version 24H2. ** Bluetooth 5.4 support also requires Windows 11 version 24H2. |
| LED Feature | 4x EZ Debug LED |
| Back Panel Ports |
|
| Operating System | Supports Windows® 11 64-bit |
| Box Content | [Image: Motherboard Accessories] |
| PCB Info | ATX 243.84mm x 304.8mm |
