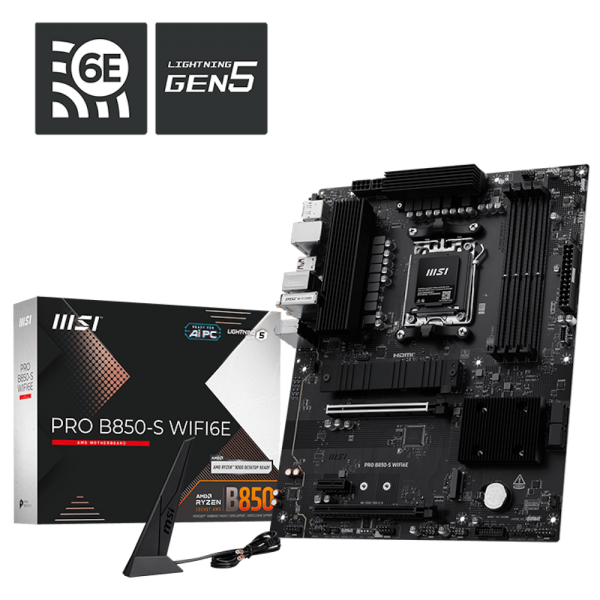

MSI PRO B850-S WIFI6E Pagrindinė Plokštė
MSI PRO B850-S WIFI6E Pagrindinė Plokštė
https://www.msi.com/Motherboard/PRO-B850-S-WIFI6E/
| Chipset | AMD B850 |
| CPU | Supports AMD Ryzen™ 9000/8000/7000 Series Desktop Processors Socket AM5 |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO™ Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • The DIMM slots on this motherboard only have single-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/. |
| Onboard Graphics | 1x HDMI™ (2.1, max 4K@60Hz) 1x DisplayPort (1.4, max 4K@60Hz) * Available only on processors with integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot: • PCIe 4.0 x16 (For Ryzen™ 9000/7000) • PCIe 4.0 x8 (For Ryzen™ 8700/8600/8400) • PCIe 4.0 x4 (For Ryzen™ 8500/8300) |
| Audio | Realtek® ALC897 7.1-Channel High Definition Audio |
| Storage | 2x M.2: • M.2_1 (From CPU): PCIe 5.0 x4, 22110/2280 • M.2_2 (From CPU): PCIe 4.0 x4, 2280/2260 4x SATA 6G M.2_1: • PCIe 5.0 x4 (Ryzen™ 9000/7000) • PCIe 4.0 x4 (Ryzen™ 8000) M.2_2: • PCIe 4.0 x4 (Ryzen™ 9000/8700/8600/8400/7000) • PCIe 4.0 x2 (Ryzen™ 8500/8300) * Please refer to the manual for M.2 SSD heatsink restrictions. |
| RAID | Supports RAID 0, 1, and 10 for SATA Supports RAID 0 and 1 for M.2 NVMe |
| USB | 4x USB 2.0 (Front) 4x USB 5Gbps Type-A (Rear) 2x USB 5Gbps Type-A (Front) 3x USB 10Gbps Type-A (Rear) 1x USB 10Gbps Type-C (Rear) 1x USB 10Gbps Type-C (Front) |
| LAN | Realtek® 8125 2.5G LAN |
| Internal IO | 1x ATX Power Connector 2x CPU Power Connector 1x CPU Fan 1x Combo Fan (Pump/Sys Fan) 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x COM Port (JCOM) 1x Tuning Controller (JDASH) 3x Addressable V2 RGB (JARGB_V2) 1x RGB LED (JRGB) 1x TPM Header (TPM 2.0) 4x USB 2.0 2x USB 5Gbps Type-A 1x USB 10Gbps Type-C |
| Wireless LAN & Bluetooth | Wi-Fi 6E Pre-installed in M.2 (Key-E) Supports MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/b/g/n/ac/ax Bluetooth® 5.3, FIPS, FISMA * 6GHz band support depends on country regulations. Wi-Fi 6E requires Windows 11. ** Bluetooth version may vary, refer to Wi-Fi chipset vendor's website. |
| LED Feature | 4x EZ Debug LED 1x EZ Memory Detection LED |
| Back Panel Ports |
|
| Operating System | Support for Windows® 11 64-bit |
| PCB Info | ATX 243.84mm x 304.8mm |
