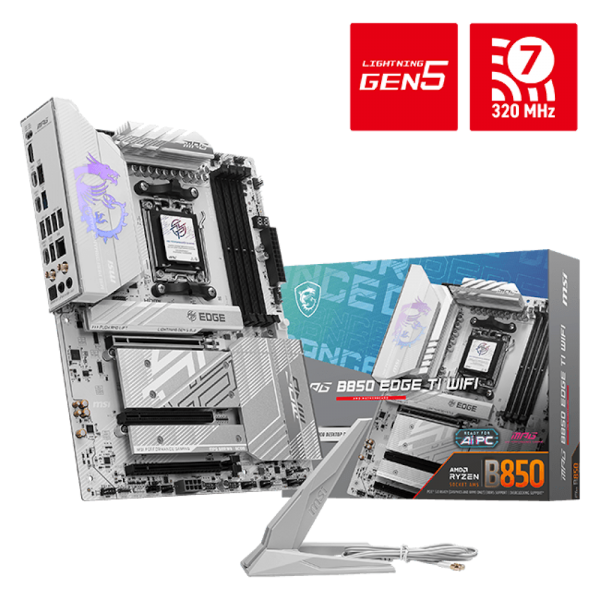

MSI MPG B850 EDGE TI WIFI Pagrindinė Plokštė
MSI MPG B850 EDGE TI WIFI Pagrindinė Plokštė
https://www.msi.com/Motherboard/MPG-B850-EDGE-TI-WIFI
| Chipset | AMD B850 |
| CPU | Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors Socket AM5 |
| Memory | 4x DDR5 UDIMM, Max Capacity 256GB DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Max Overclocking: • 1DPC 1R: up to 8400+ MT/s • 1DPC 2R: up to 6400+ MT/s • 2DPC 1R: up to 6400+ MT/s • 2DPC 2R: up to 6400+ MT/s Supports AMD POR and JEDEC speeds Supports Memory Overclocking and AMD EXPO™ Dual-Channel mode, Non-ECC, Un-buffered Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series. Manual overclocking may be required. * The DIMM slots on this motherboard only have single-sided latches. * Memory compatibility and speeds depend on CPU and configuration. See MSI Support for details. |
| Onboard Graphics | 1x HDMI™ (HDMI 2.1 FRL, max resolution 8K @ 60Hz)* * Only available with processors featuring integrated graphics. Specs may vary by CPU. |
| Slot | 3x PCI-E x16 slots • PCI_E1 (Gen 5.0 x16, from CPU) • PCI_E2 (Gen 3.0 x1, from Chipset) • PCI_E3 (Gen 4.0 x4, from Chipset) PCI_E1 supports: • PCIe 5.0 x16 (Ryzen™ 9000/7000) • PCIe 4.0 x8 (Ryzen™ 8700/8600/8400) • PCIe 4.0 x4 (Ryzen™ 8500/8300) * PCI_E3 will run x2 when M.2_3 is populated. |
| Audio | Realtek® ALC4080 Codec 7.1-Channel USB High-Performance Audio Up to 32-bit / 384 kHz playback (Front Panel) Supports S/PDIF Output |
| Storage | 4x M.2 Slots • M.2_1 (CPU): PCIe 5.0 x4, 22110/2280 • M.2_2 (CPU): PCIe 5.0 x4, 2280/2260 • M.2_3 (Chipset): PCIe 4.0 x2, 2280/2260 • M.2_4 (Chipset): PCIe 4.0 x4, 2280/2260 4x SATA 6G M.2_1: • PCIe 5.0 x4 (Ryzen™ 9000/7000) • PCIe 4.0 x4 (Ryzen™ 8000) M.2_2: • PCIe 5.0 x4 (Ryzen™ 9000/7000) • PCIe 4.0 x4 (Ryzen™ 8700/8600/8400) • PCIe 4.0 x2 (Ryzen™ 8500/8300) |
| RAID | • Supports RAID 0, 1, 10* for M.2 NVMe * RAID 10 for NVMe supported only on Ryzen 9000/7000 series CPUs |
| USB | Rear: • 4x USB 2.0 • 1x USB 5Gbps Type-A • 2x USB 10Gbps Type-A • 3x USB 10Gbps Type-C Front: • 4x USB 2.0 • 4x USB 5Gbps Type-A • 1x USB 20Gbps Type-C |
| LAN | Realtek® 8126 5G LAN |
| Internal IO | 1x 24-pin ATX Power 2x 8-pin CPU Power 1x PCIe Power (8-pin) 1x CPU Fan 1x Pump/Sys Combo Fan 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable RGB V2 (JARGB_V2) 1x RGB LED (JRGB) 1x TPM Header (TPM 2.0) 4x USB 2.0 4x USB 5Gbps Type-A 1x USB 20Gbps Type-C |
| Wireless LAN & Bluetooth | Wi-Fi 7 (M.2 Key-E, pre-installed) MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (320MHz), up to 5.8Gbps Supports 802.11 a/b/g/n/ac/ax/be Bluetooth® 5.4, MLO, 4KQAM * 6GHz availability depends on country regulations. Wi-Fi 7 supported in Windows 11 version 24H2. ** Bluetooth version subject to update. Refer to chipset vendor. BT 5.4 supported in Windows 11 version 24H2. |
| LED Feature | 4x EZ Debug LED 1x EZ Digit Debug LED 1x EZ Memory Detection LED |
| Back Panel Ports |
|
| Operating System | Supports Windows® 11 64-bit |
| Box Content | [Image: Motherboard Accessories] |
| PCB Info | ATX 304.8mm x 243.84mm |
