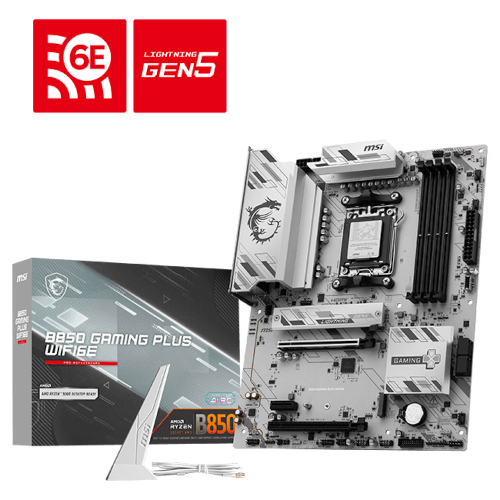

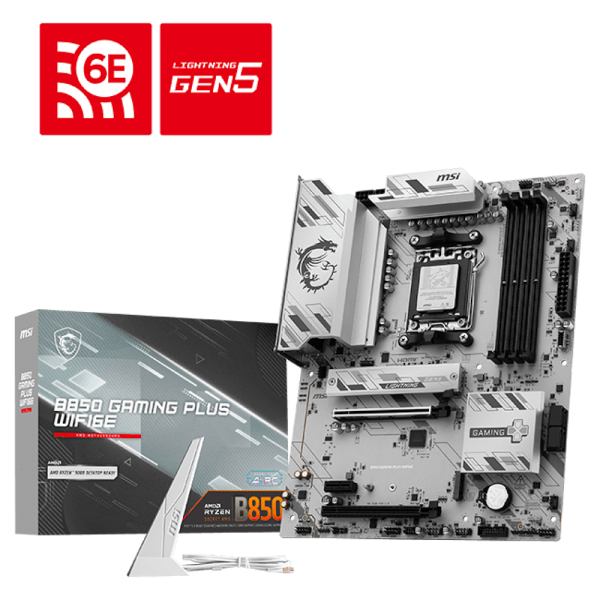

MSI B850 GAMING PLUS WIFI6E Pagrindinė Plokštė
MSI B850 GAMING PLUS WIFI6E Pagrindinė Plokštė
https://www.msi.com/Motherboard/B850-GAMING-PLUS-WIFI6E
| Chipset | AMD B850 |
| CPU | Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors Socket AM5 |
| Memory | 4x DDR5 UDIMM, Max Capacity 256GB DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Max Overclocking: • 1DPC 1R: up to 8200+ MT/s • 1DPC 2R: up to 6400+ MT/s • 2DPC 1R: up to 6400+ MT/s • 2DPC 2R: up to 6000+ MT/s Supports AMD POR and JEDEC speeds Supports Memory Overclocking and AMD EXPO™ Dual-Channel mode, Non-ECC, Un-buffered Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series. Manual overclocking may be required. BIOS updates may improve compatibility. • Memory compatibility and speeds depend on CPU and memory configuration. Refer to MSI Support for detailed info. |
| Onboard Graphics | 1x HDMI™ (HDMI 2.1, max resolution 4K @ 60Hz) 1x DisplayPort (DP 1.4, max resolution 4K @ 60Hz) * Only available with CPUs featuring integrated graphics. Specs may vary depending on the processor. |
| Slot | 2x PCI-E x16 slots 1x PCI-E x1 slot PCI_E1: PCIe 4.0 x16 (From CPU) PCI_E2: PCIe 3.0 x1 (From Chipset) PCI_E3: PCIe 4.0 x4 (From Chipset) PCI_E1 Slot: • PCIe 4.0 x16 (Ryzen™ 9000/7000) • PCIe 4.0 x8 (Ryzen™ 8700/8600/8400) • PCIe 4.0 x4 (Ryzen™ 8500/8300) |
| Audio | Realtek® ALC897 7.1-Channel High Definition Audio |
| Storage | 2x M.2 • M.2_1 (From CPU): PCIe 5.0 x4, supports 22110/2280 • M.2_2 (From CPU): PCIe 4.0 x4, supports 2280/2260 4x SATA 6G M.2_1: • PCIe 5.0 x4 (Ryzen™ 9000/7000) • PCIe 4.0 x4 (Ryzen™ 8000) M.2_2: • PCIe 4.0 x4 (Ryzen™ 9000/8700/8600/8400/7000) • PCIe 4.0 x2 (Ryzen™ 8500/8300) * Refer to the manual for M.2 SSD heatsink restrictions. |
| RAID | Supports RAID 0, 1, 10 for SATA Supports RAID 0, 1 for M.2 NVMe |
| USB | Front: • 4x USB 2.0 • 2x USB 5Gbps Type-A • 1x USB 10Gbps Type-C Rear: • 4x USB 5Gbps Type-A • 3x USB 10Gbps Type-A • 1x USB 10Gbps Type-C |
| LAN | Realtek® 8125D 2.5G LAN |
| Internal IO | 1x 24-pin ATX Power 2x 8-pin CPU Power 1x CPU Fan 1x Pump/Sys Combo Fan 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x COM Port (JCOM) 1x JDASH (Tuning Controller) 3x Addressable RGB (JARGB_V2) 1x RGB LED (JRGB) 1x TPM Header (TPM 2.0) 4x USB 2.0 2x USB 5Gbps Type-A 1x USB 10Gbps Type-C |
| Wireless LAN & Bluetooth | Wi-Fi 6E (pre-installed in M.2 Key-E slot) MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/b/g/n/ac/ax Bluetooth® 5.3, FIPS, FISMA * 6GHz availability depends on regional regulations. Wi-Fi 6E supported on Windows 11. ** Bluetooth 5.3 supported on Windows 10 (21H1) and Windows 11. |
| LED Feature | 4x EZ Debug LED 1x EZ Memory Detection LED |
| Back Panel Ports |
|
| Operating System | Supports Windows® 11 64-bit |
| Box Content | [Image: Motherboard Accessories] |
| PCB Info | ATX 243.84mm x 304.8mm |
